TMX-H Series

TMX-H Series

Features :

  • Sounder
  • Non-washable / Washable
  • Dip Solder
  • High SPL
  • Automotive Use
  • ※ Please request label type if you need washable.

Introduction / Specification / Manual :

Introduction

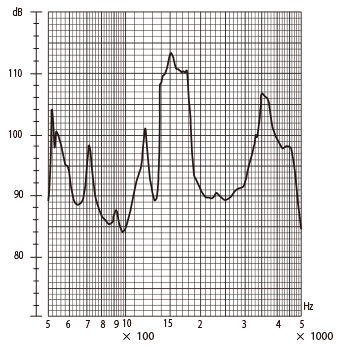

Frequency Response:

(TMX-03H)

TMX-03H Frequency Response

※applied voltage:12V, square wave:1/2duty, distance for measurement:10cm



Dimensions:(size:φ25×12.5mm)

(TMX-03H)

TMX-03H Dimensions

unit:mm/housing material:PPE-M

Specification

TMX-03HTMX-05HTMX-12H
Rated Voltage(V)3.6512
※ Mean Current Consumption(mA)MAX300MAX80MAX55
Coil Resistance(Ω)4.5±0.530±5120±15
※ SPL at MIN 10cm(dBA)MIN106(TYP110)MIN104(TYP110)
Rated Frequency(Hz)1,500
Operating Voltage(V)MAX5MAX6MAX16
Operating Temperature(℃)-40 ~ +80-40 ~ +85
Storage Temperature(℃)-40 ~ +80-40 ~ +120
Mass(g)9

※Value applying rated voltage(1,500Hz, 1/2duty, square wave)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
