MLT-GC Series

MLT-GCHH Series

Features :

  • Sounder
  • Non-washable
  • Reflow
  • Auto Mounting
  • High SPL
  • Small
  • Side Sound Port
  • ※ As for non washable products, dip soldering should not be implemented.

Introduction / Specification / Manual :

Introduction

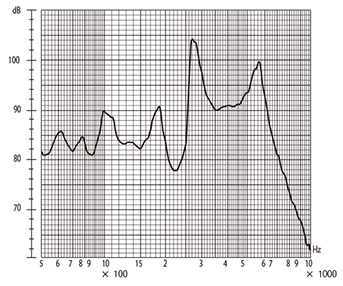

Frequency Response:

(MLT-03GC)

MLT-03GC Frequency Response

※applied voltage:3.6V, square wave:1/2duty, distance for measurement:10cm with recommended cavity



Dimensions:(size:φ8.5×8.5×4mm)

(MLT-03GC)

MLT-03GC Dimensions

unit:mm/housing material:LCP

Specification

 MLT-03GC
Rated Voltage(V)3.6
※ Mean Current Consumption(mA)MAX100
Coil Resistance(Ω)17±3
※ SPL at MIN 10cm(dBA)MIN94(TYP103)
Rated Frequency(Hz)2,700
Operating Voltage(V)MAX4.5
Operating Temperature(℃)-30 ~ +70
Storage Temperature(℃)-40 ~ +85
Mass(g)0.5

※Value applying rated voltage(2,700Hz, 1/2duty, square wave)
