NAT Series

NAT Series

Features :

  • Sounder
  • Non-washable
  • Reflow
  • Auto Mounting
  • Wide Band
  • Upper Sound Port
  • High SPL
  • Automotive Use
  • ※ As for non washable products, dip soldering should not be implemented.

Introduction / Specification / Manual :

Introduction

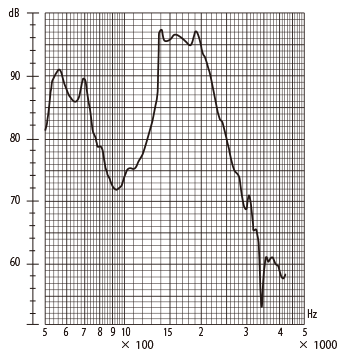

Frequency Response:

(NAT-12A)

NAT-12A Frequency Response

※applied voltage:12V, square wave:1/2duty, distance for measurement:10cm



Dimensions:(size:φ15×17×12mm)

(NAT-12A)

NAT-12A Dimensions

unit:mm/housing material:PA6T

Specification

NAT-05ANAT-12A
Rated Voltage(V)512
※ Mean Current Consumption(mA)MAX80MAX75
Coil Resistance(Ω)30±5120±10
※ SPL at MIN 10cm(dBA)MIN88(TYP95)MIN88(TYP95)
Rated Frequency(Hz)2,000
Frequency Band(Hz)1,700 ~ 2,300
Operating Voltage(V)MAX7MAX16
Operating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +85
Mass(g)3

※Value applying rated voltage(2,000Hz, 1/2duty, square wave)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
