SAG-40A Dynamic Speaker, SAG-40C Dynamic Speaker

SAG-40A, SAG-40C

Features :

  • Dynamic Speaker
  • Non-washable
  • Heat Resistant
  • High SPL
  • Automotive Use

Introduction / Specification / Manual :

Introduction

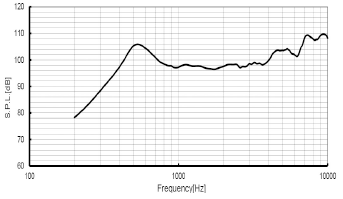

Frequency Response:

(SAG-40A)

 Frequency Response



Dimensions:(size:φ40×10.9mm)

(SAG-40A)

SAG-40A Dimensions

unit:mm/housing material:PP



(SAG-40C)

SAG-40C Dimensions

unit:mm/housing material:PP

※ Consult us for the details of variation and installation method.

Specification

SAG-40 Series
Nominal Input(W)0.5
Impedance(Ω)8/30
Resonance Frequency(Hz)-
※ SPL(dB/10cm)≧90
Operating Temperature(℃)-40 ~ +105
Storage Temperature(℃)-40 ~ +120
Mass(g)12

※Value applying nominal input(sine wave, 440~2.2KHz)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
